Pentair Combination Gas Control Valve Kit For MasterTemp and Max-E-Therm Heaters | 42001-0051S
Pickup available at SOS E-Commerce Center
Usually ready in 24 hours
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
Found In These Collections
- Description
- Highlights
- Compatibility

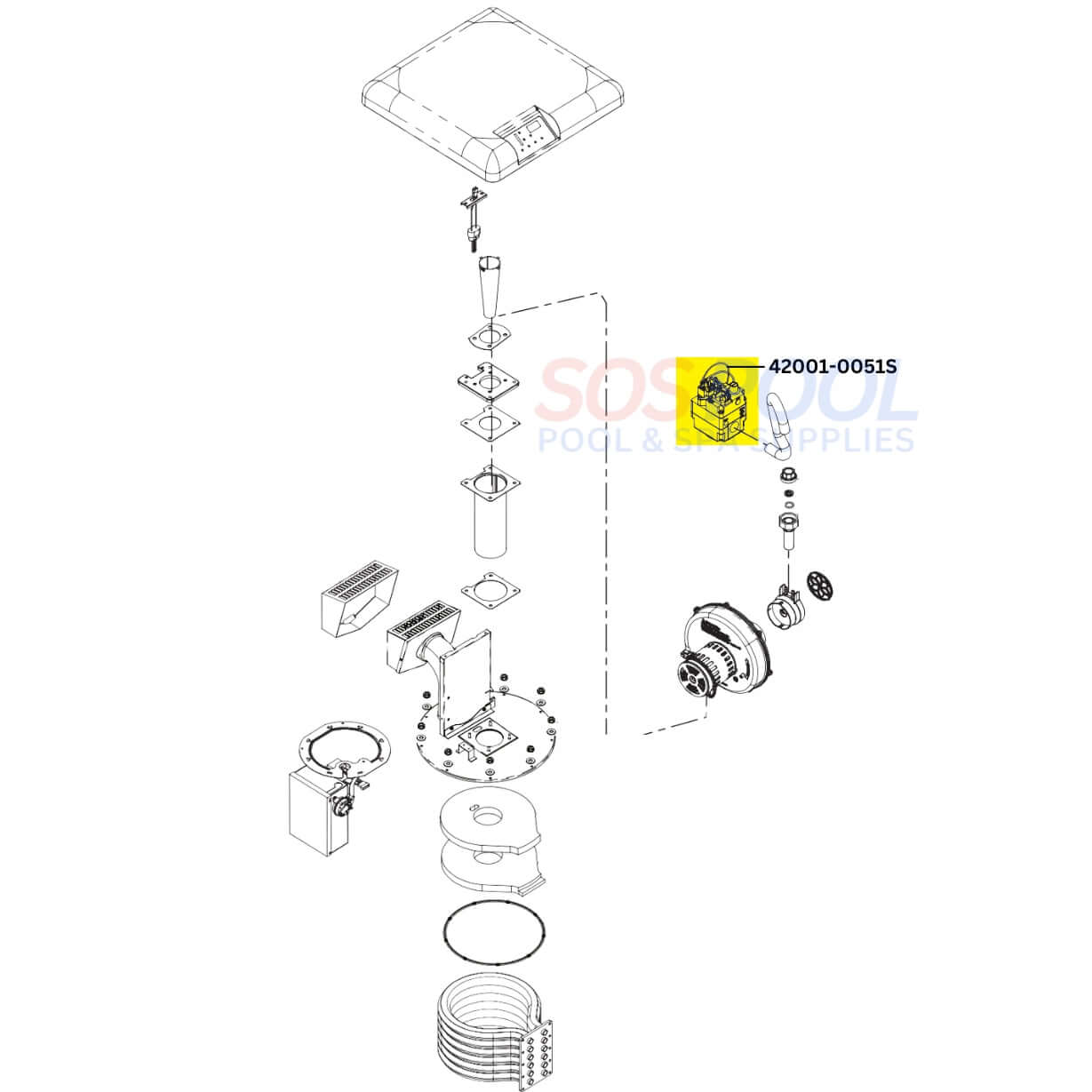

- Diagram
- Reviews

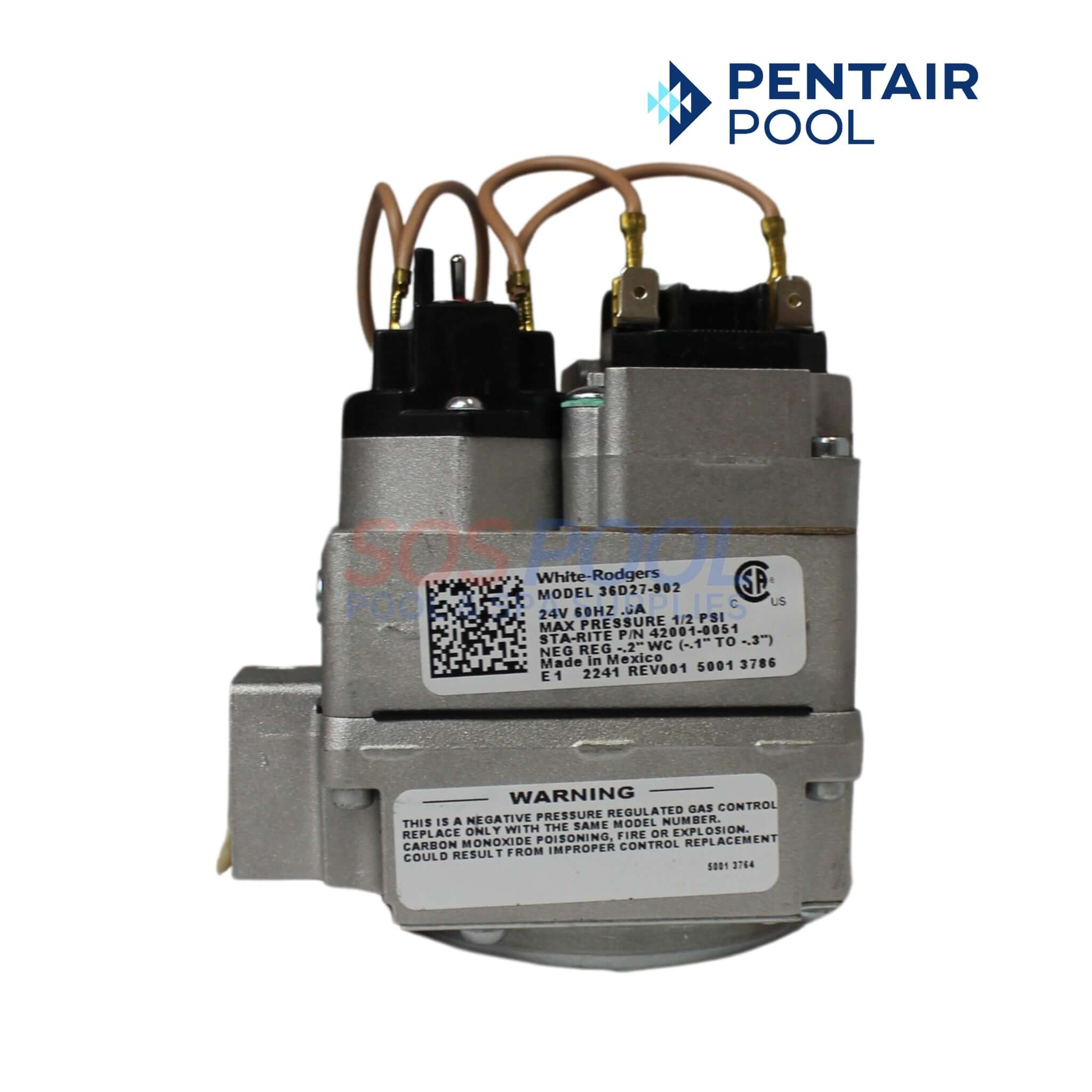

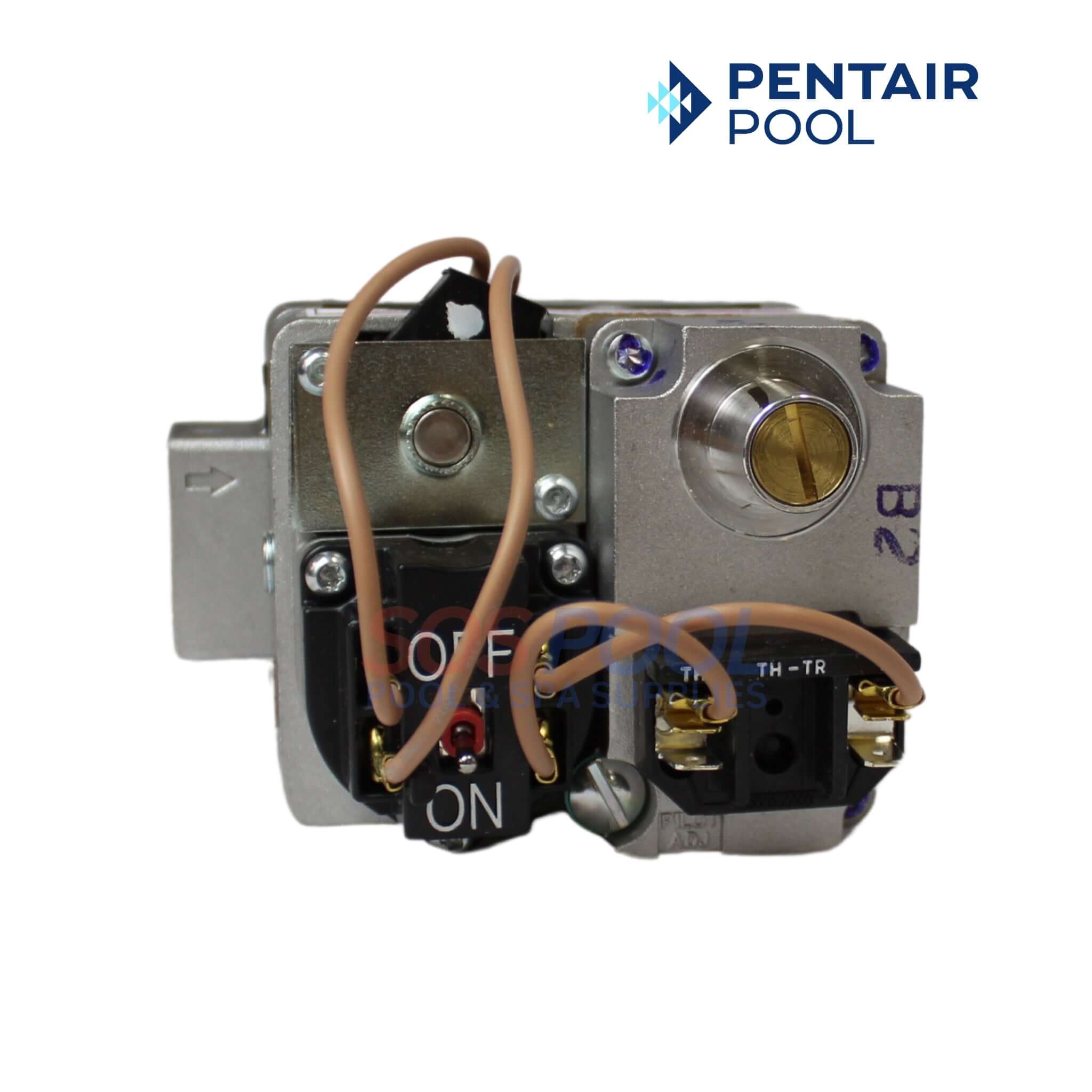

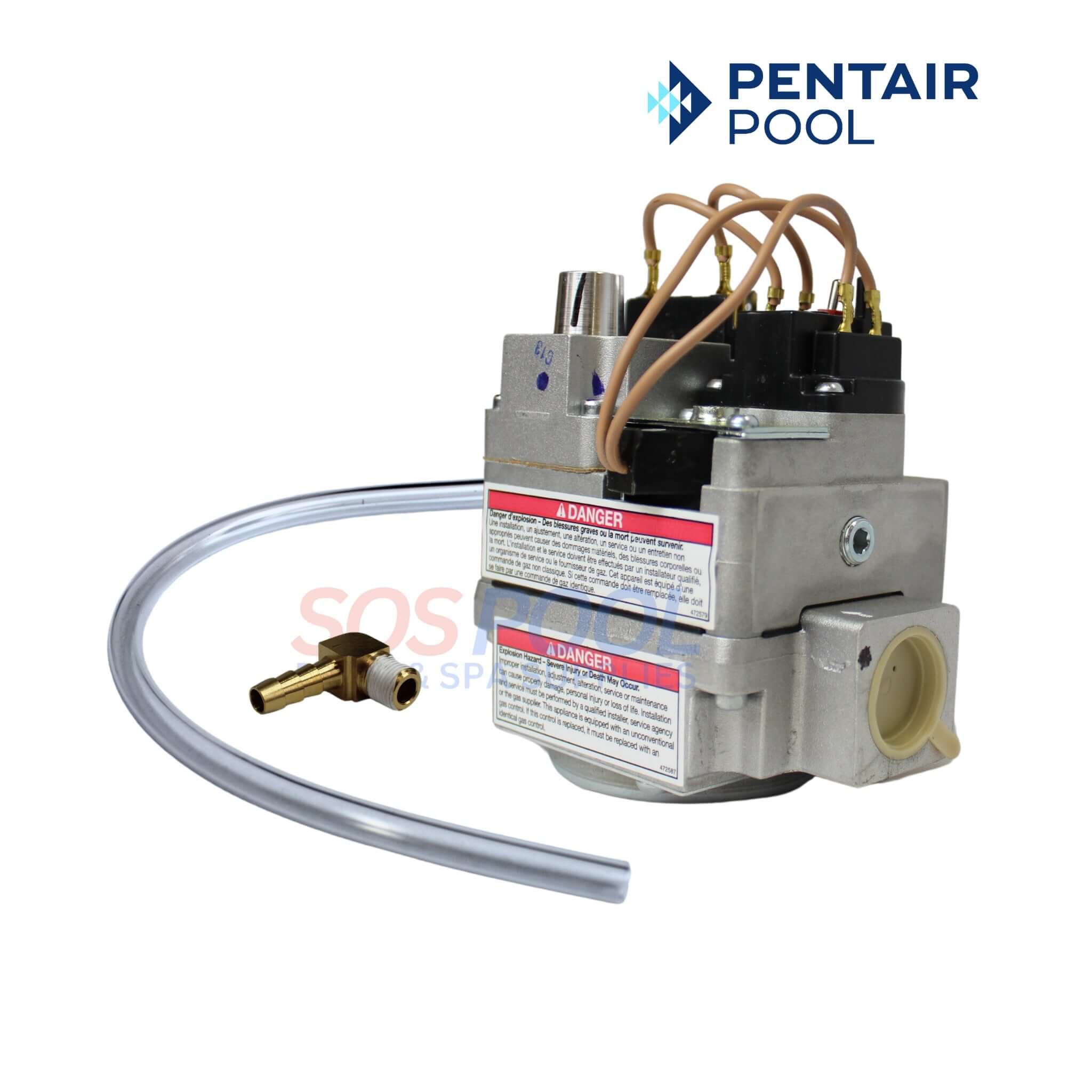

The Pentair Combination Gas Control Valve Kit, model 42001-0051S, is a crucial component for maintaining the efficiency and safety of pool heating systems. Designed specifically for compatibility with Pentair Sta-Rite Max-E-Therm and MasterTemp pool and spa heaters, this kit includes a burner system combination gas control valve. This ensures reliable operation and optimal performance of your heating systems, making it an ideal replacement part for system maintenance and heater functionality.

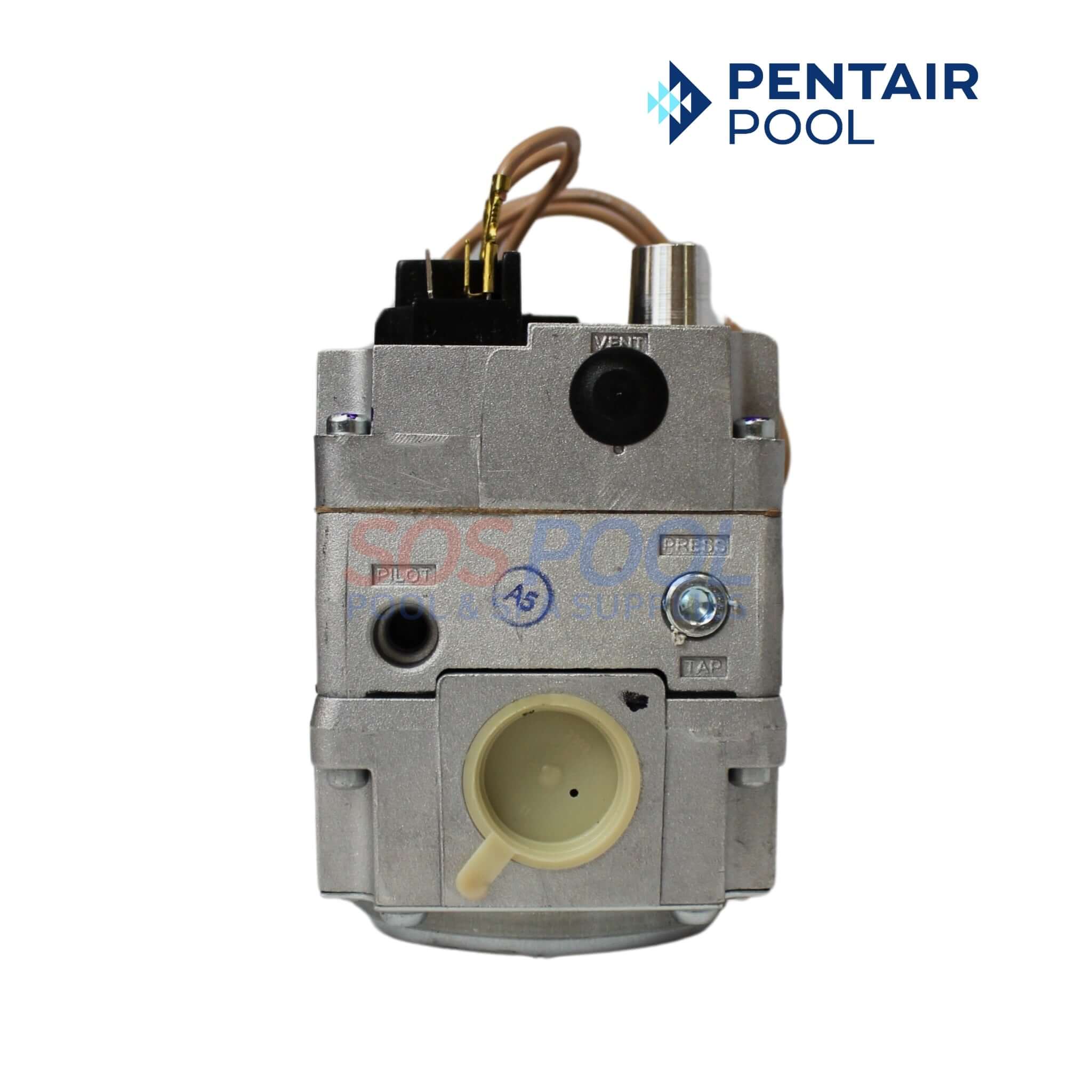

The combination gas valve incorporates dual shut-off valves and a negative-pressure regulator. For proper operation, the regulated pressure at the outlet manifold of the valve must be 1.1 ± 0.5 mbar below the reference pressure at the blower mixer inlet, and the gas valve ‘VENT’ tap must be connected to the end cap air orifice as shown in Figure 14. DO NOT attempt to adjust the gas input by adjusting the regulator setting. The correct gas regulator setting is required to maintain proper combustion and must NOT be altered. The Mastertemp heater is equipped with a combination gas valve that incorporates dual shut-off valves and a negativepressure regulator. which is factory set with a manifold pressure of 11 Pa ± 5 Pa below the reference pressure at the blower mixer inlet,. If this control valve is replaced, it must be replaced with an identical control, and a gas valve “VENT” tap must be connected to the end cap air orifice
