Raypak Control Panel Window for 302A-902B | 009747F
Fits these models
Shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 2 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

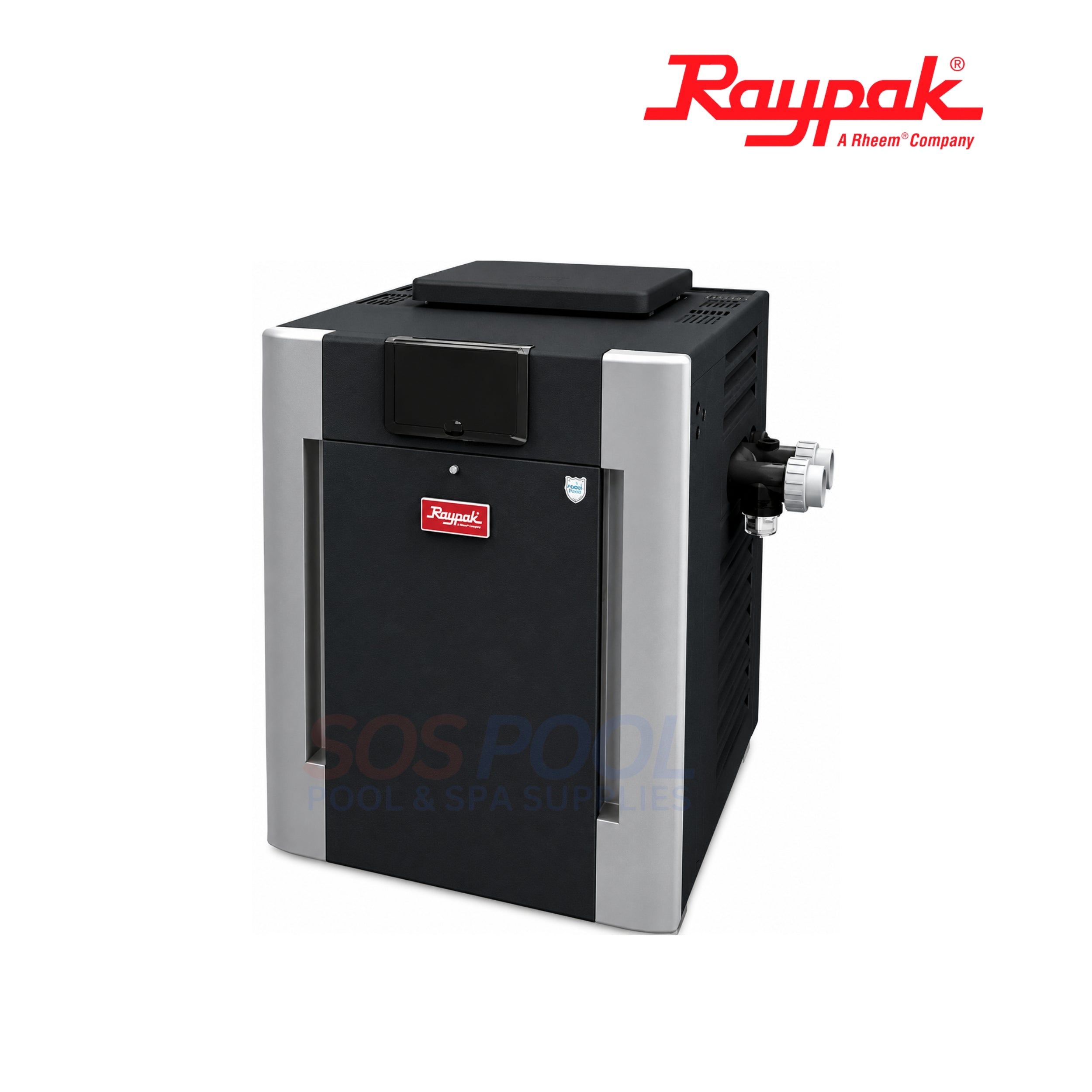

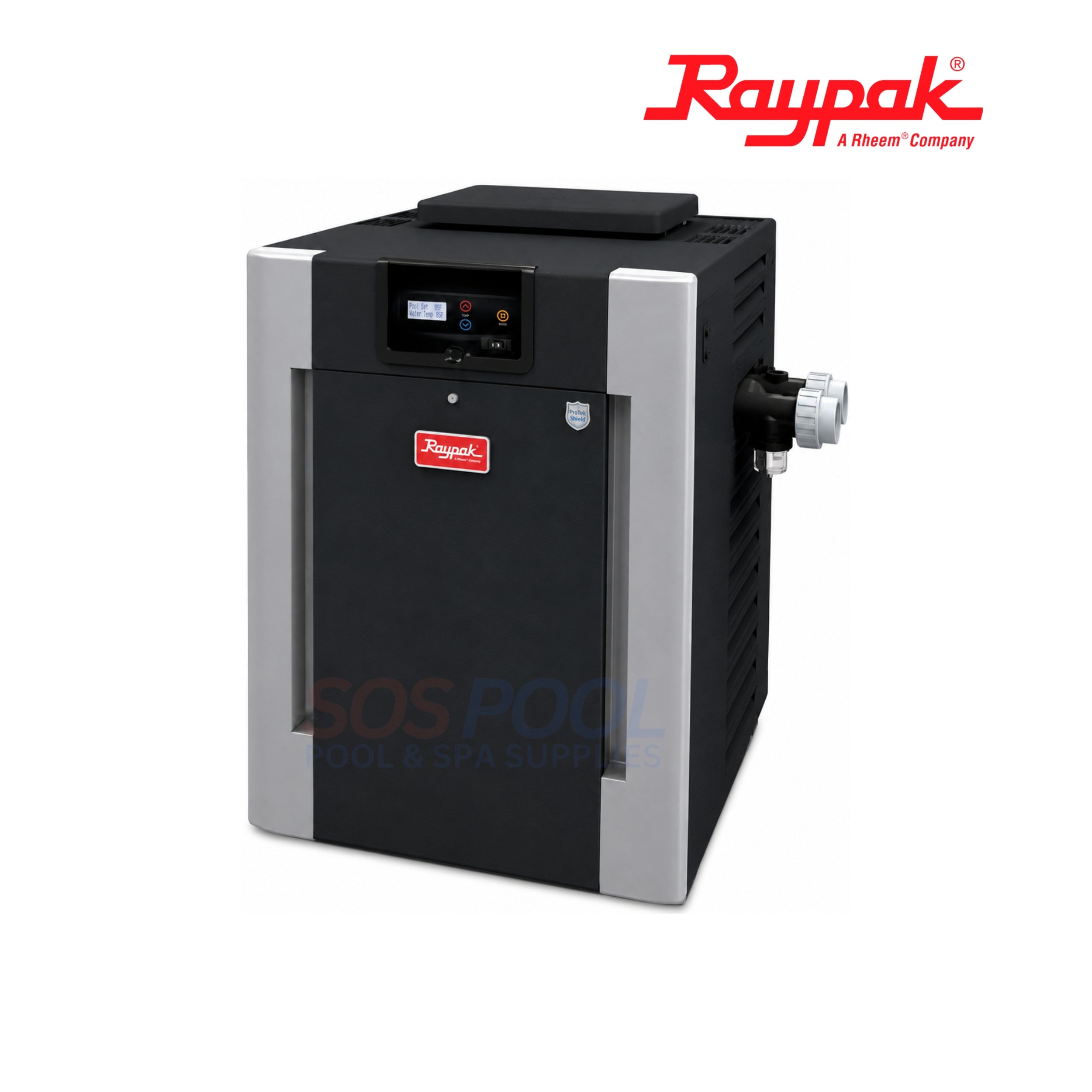

The Raypak 009747F Control Panel with Window is a replacement front panel assembly for Hi-Delta heater models 302A through 902B. It combines a durable housing with a clear window that allows users to view status lights or control indicators without exposing the electronics. Built to OEM-grade specifications, this Raypak panel restores the correct fit, protects sensitive components, and helps maintain long-term heater reliability. Replacing a cracked, faded, or missing panel ensures proper sealing and continued safe operation.
-
Direct-Fit OEM Replacement: Designed for Raypak Hi-Delta heaters 302A–902B, this control panel matches the original unit and includes a clear window for indicator visibility.
-
Improves Access & Safety: Provides visual access to LEDs and controls while keeping dust, heat, and moisture out of the control enclosure.
-
Engineered for Exact Fitment: Manufactured to Raypak standards with correct mounting points and sealing surfaces to ensure seamless integration.
-
Built for Longevity: Constructed from tough, UV-stabilized plastics that resist environmental wear, helping the panel retain its integrity over time.
-
Restores Proper Function: Replacing damaged or missing panels protects internal components, supports heater safety, and keeps systems running reliably.
- Raypak 302A-902B Heater Models
