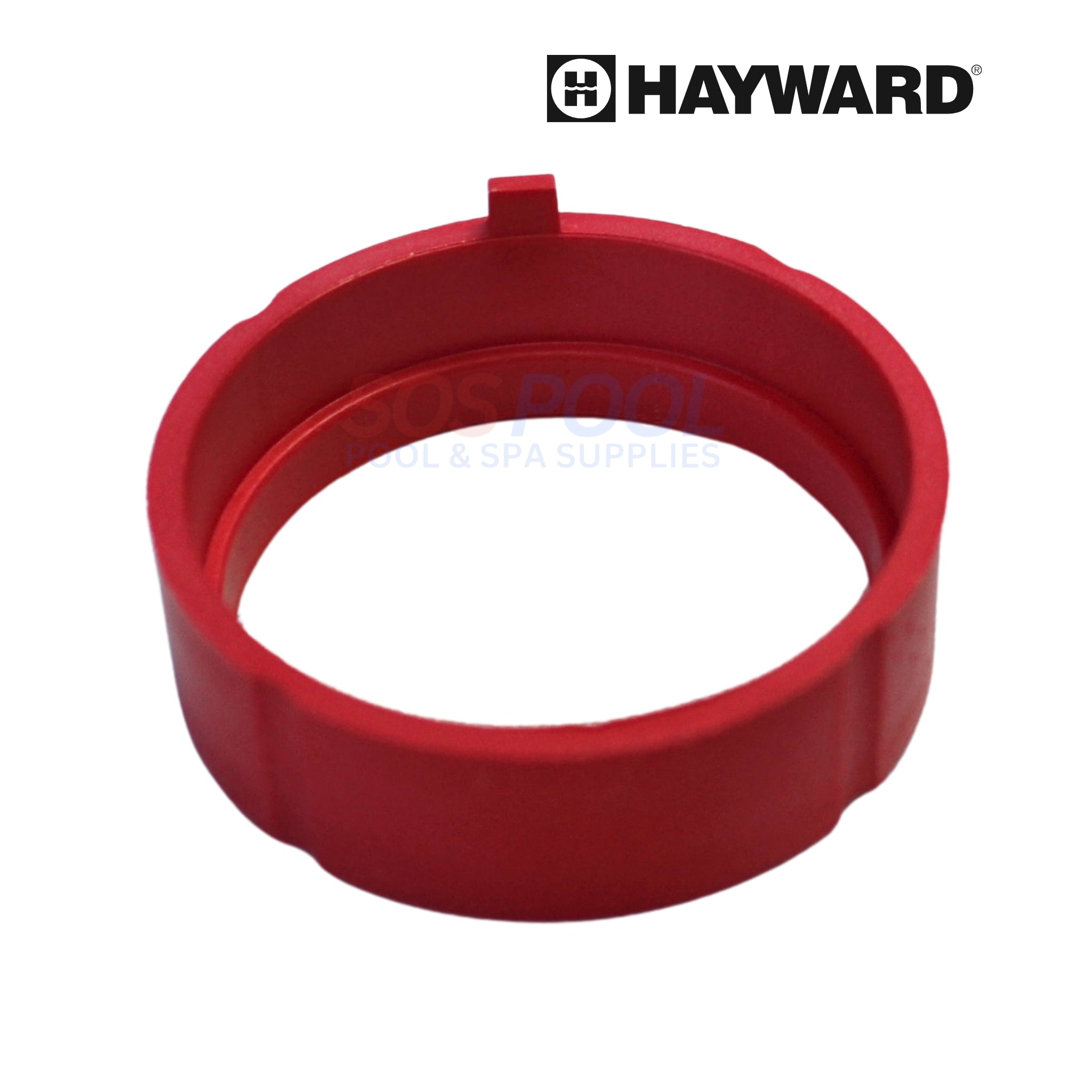

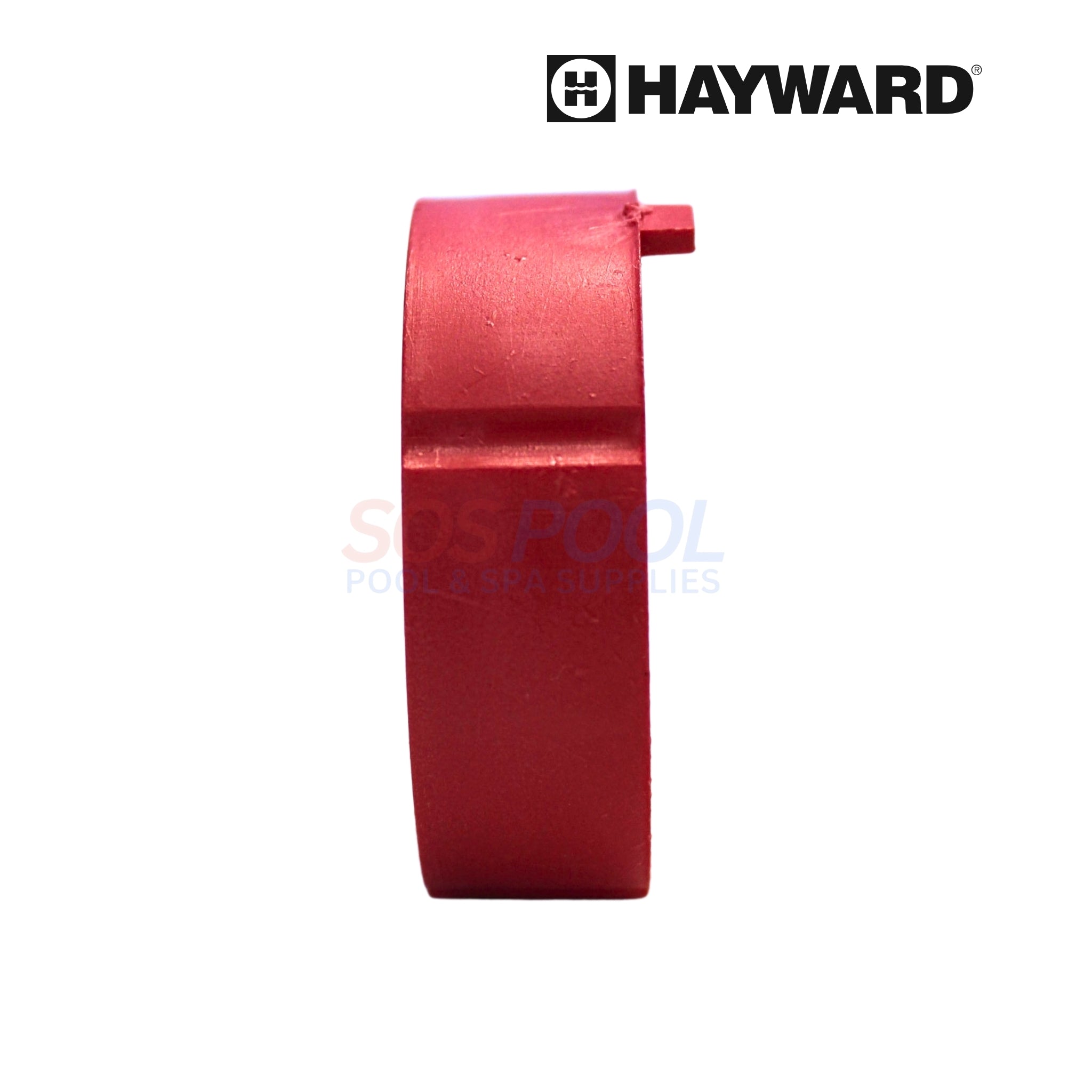

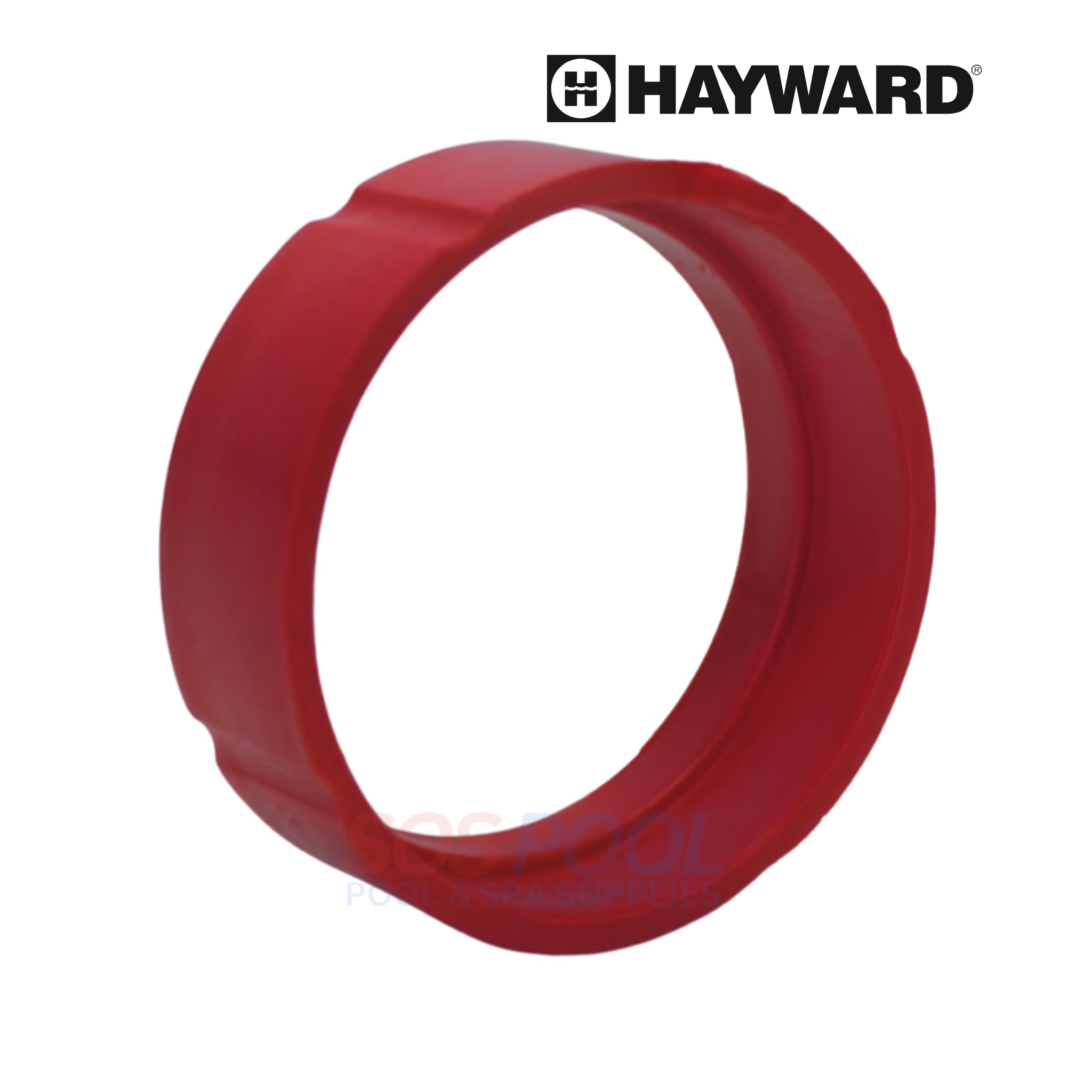

Hayward Cone Gear Bushing | AXV306
Fits these models (3)
Shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 16 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
Other parts on the same Hayward Navigator Pro Cleaner
The Hayward AXV306 Cone Gear Bushing is a molded precision component engineered to maintain proper gear alignment and rotation in compatible Hayward suction cleaners. Designed for durability and efficiency, it minimizes wear within the cleaner’s drive system, supporting consistent movement and suction power. The AXV306 offers a direct-fit installation that restores smooth, dependable operation for Hayward Navigator, PoolVac, and AquaBug series models. Ideal for replacements or regular service, this component contributes to long-term cleaner reliability and coverage consistency.
-
Engineered Precision: Designed to maintain gear alignment and smooth rotational balance in Hayward suction systems.
-
Friction Reduction: Reduces internal wear on drive gears to extend cleaner life and maintain performance.
-
High-Strength Material: Built from durable molded plastic that resists pool water exposure and mechanical stress.
-
Direct-Fit Compatibility: Fits Hayward Navigator, PoolVac, and AquaBug models without modification.
- Restores Cleaner Performance: Helps sustain optimal suction, tracking accuracy, and cleaning consistency.
- Hayward Navigator Pro Automatic Suction Cleaner
- Hayward PoolVac Automatic Suction Cleaner
- Hayward AquaBug Above Ground Suction Cleaner
