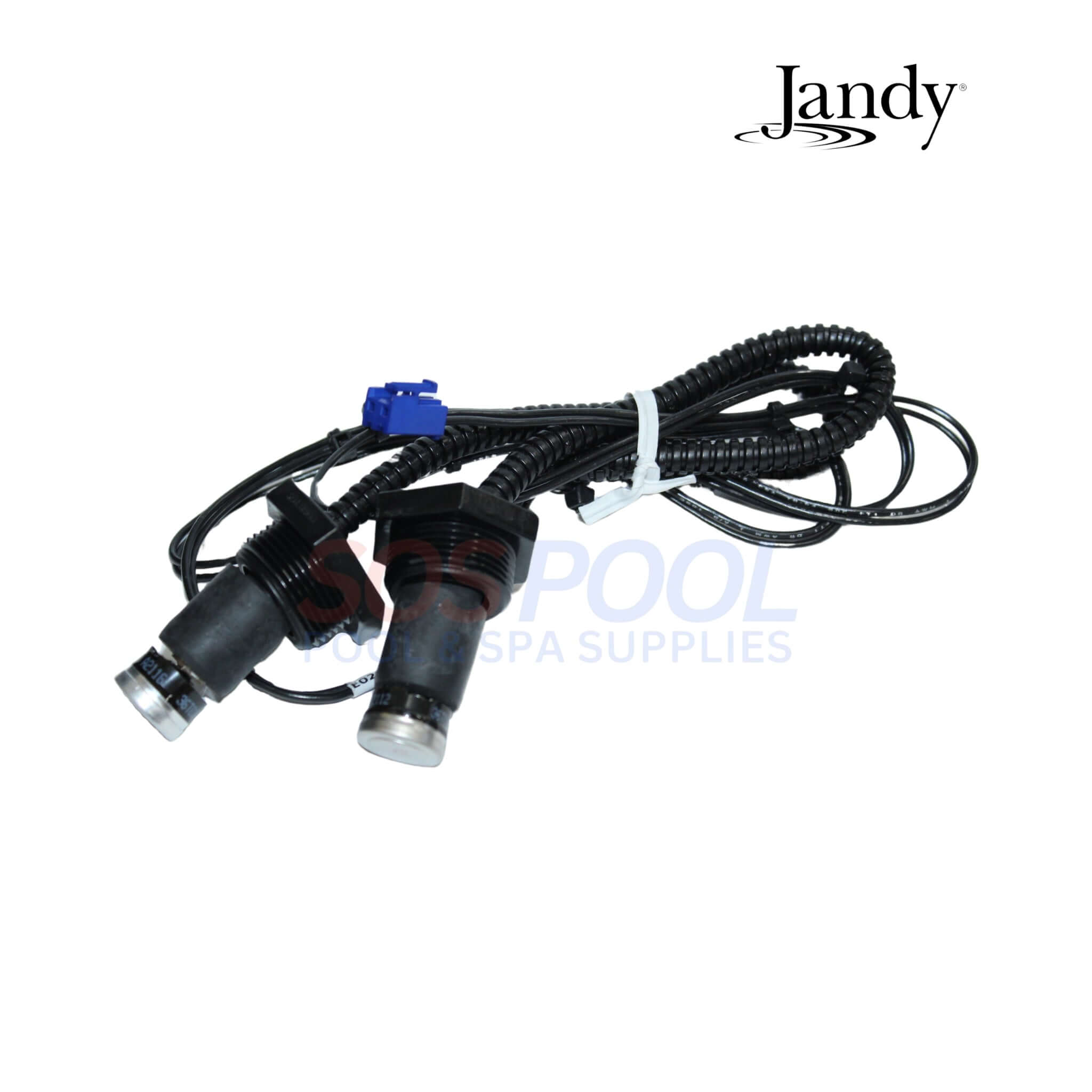

Jandy High Limit Switch Harness For LXi and LRZE Heaters | R0457400
Fits these models (2)
Shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 32 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
The OEM Jandy R0457400 High Limit Switch Harness is a crucial component for LXi and LRZE pool and spa heaters. This harness provides the electrical connection between the high limit switches and the heater's control board. It ensures reliable communication and prevents the heater from overheating, safeguarding it from potential damage. Designed for compatibility with both LXi and LRZE models, the R0457400 high limit switch harness is a versatile and essential part for maintaining the safety and performance of your pool or spa heating system. Its durable construction and reliable electrical connections guarantee long-lasting performance and peace of mind.
- Essential Function: Provides the electrical connection between the high limit switches and the heater's control board, ensuring reliable communication and preventing overheating.
- Safety Feature: Safeguards the heater from potential damage by preventing overheating.
- Versatility: Compatible with both LXi and LRZE models, making it a versatile and essential part for maintaining the safety and performance of your pool or spa heating system.
- OEM Quality: As an original equipment manufacturer (OEM) part, the Jandy R0457400 High Limit Switch Harness adheres to the highest quality standards set by Jandy. It is constructed using premium materials and undergoes rigorous testing to ensure durability, reliability, and long-lasting performance.
- Replacement Part: The Jandy R0457400 is a direct replacement for the original high limit switch harness in your Jandy LXi or LRZE heater. Its compatibility ensures a seamless installation process and allows you to restore your heater's functionality without any hassle.

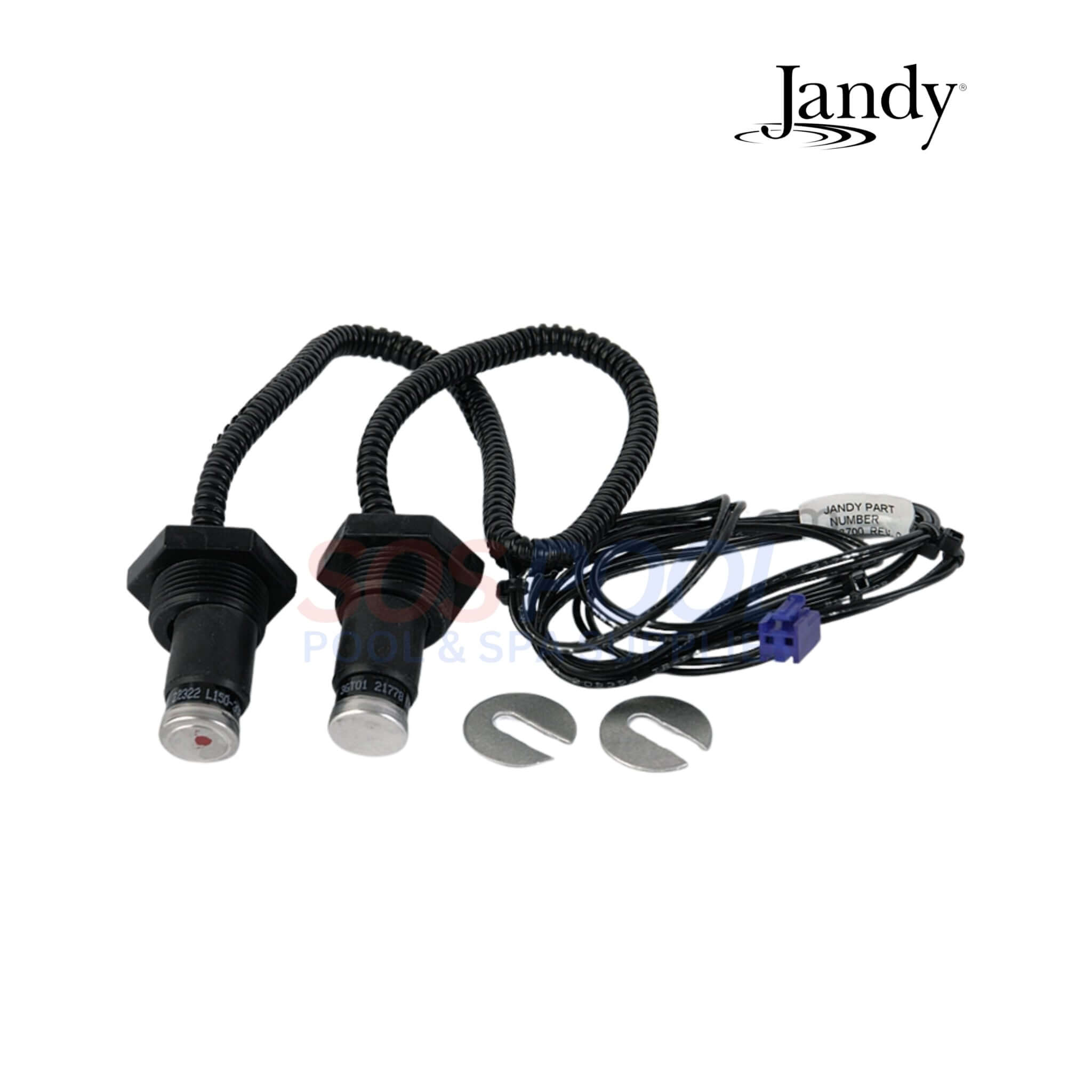

- (1) High Limit Harnes

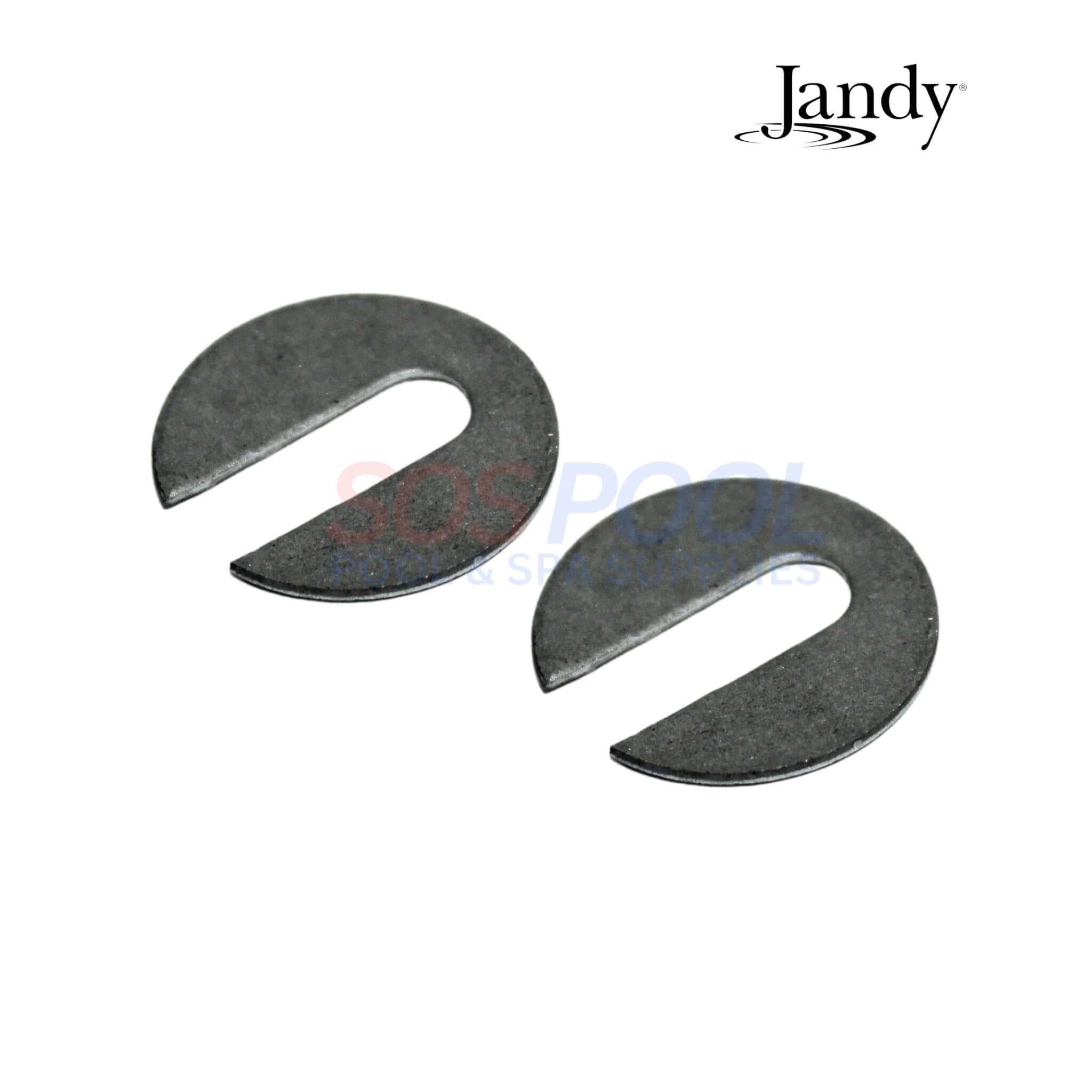

- (2) Cut Washers
- Jandy LXi Heaters
- Jandy Legacy LRZE Heaters
